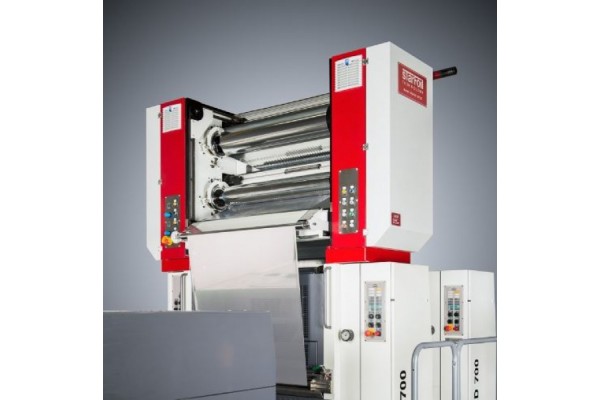

Starfoil Cold Foil 110 unit

What is Cold Foil
Gloss foil transfer is a process in which aluminium, transported on a metalized polyester carrier, is applied on paper or cardboard in a conventional offset printing press without the use of heat. Adhesive is first printed on the paper sheet by means of the standard offset printing unit, while on the following printing unit the metalized coating of the polyester carrier is transferred only to the areas where the adhesive has been applied. The result is a silver or gold glossy layer on certain parts of the printed sheet.

What is Cast & Cure
The Cast and Cure process uses a holographic film in combination with a UV coating on any substrate to “cast" a holographic effect into the UV coating. While the holographic film, UV coating and substrate are in contact, the UV coating is “cured". Then, as the film is removed from the substrate, the holographic effect is left on the surface of the material in the UV coating. Since there is no transfer of material taking place, as in cold foil, the film is re/usable.



Highlights Starfoil Cold Foil 110 unit

  • Foil cores till 16.000 running meters can be used (single roll)

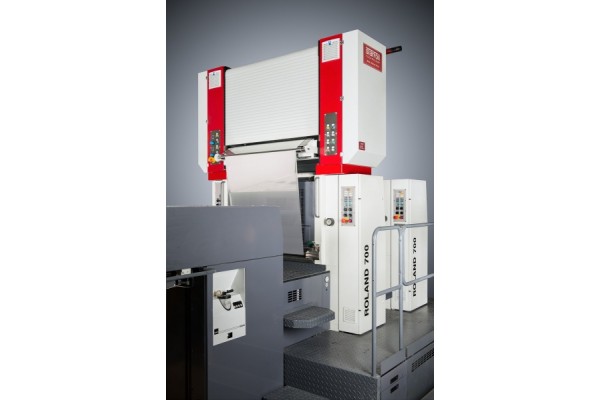

  • Very low building high (1,50 meter above Printing or Varnish tower)
  • Excess between the printing towers are optimal
  • No catwalks necessary
  • Speed of up to 16.000 sheets/hour is achievable (depending on printing press, paper/carton, foil, adhesive and blankets)
  • Because of the use of high tech Boschrexroth motion control systems with torque control, no dancers are necessary. So the foil is not damaged, therefore a very good printing result and no dust on the printing tower
  • Diameter detecting for quick start up and signals for feeder stop at empty foil core
  • Thickness of the foil core can be adjusted --> Optimal foil use
  • Foil brake detection
  • No heavy multi reals shafts (optional)
  • Remote closing and opening of the chucks (optional)
  • Can be equipped with an intelligence loading and unloading system (optional)
Standard:

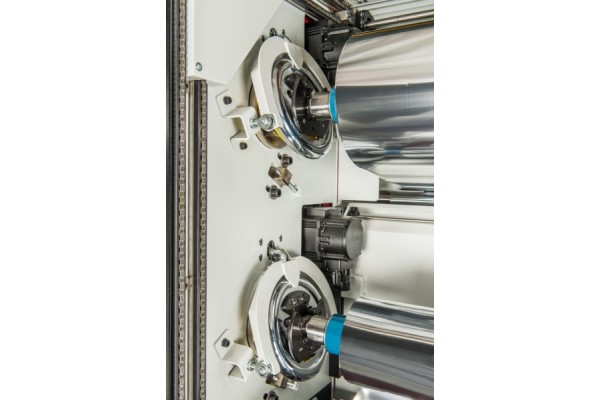

  • 3 inch clamping shafts. Mechanical closing, with air opening (2x)
  • Photocell for foil brake detection, mechanical positioning (1x)
  • Ultra sound diameter measuring (2x)
  • Thickness of the foil core to be adjusted
  • Electronic regulated foil tension at single roll (2x)
  • Remote control via Ethernet
Specifications

Power / air
  • Power voltage 400 V / 50 Hz
  • Total power supply 15 kW
  • Air supply (if option Multi reel is chosen) 8 bar
General specifications
  • Total height of the Top-On unit 1510 mm
  • Total net weight 1.500 kg
Specifications Direct Foil Drive
  • Maximum foil roll diameter 550 mm
  • Maximum running meters 16.000 meter
  • Foil core diameter 3“
  • Maximum foil width 1100 mm
  • Minimum foil width 100 mm
  • Max. speed (depending on printing press, 16.000 sheets/hour
    paper/carton, foil, adhesive and blankets)
  • Max. speed at Multi Reel use (depending on printing press, 13.000 sheets/hour
    paper/carton, foil, adhesive and blankets) (optional)
The machine is delivered with the European safety certificate CE.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE


Options

Remote chuck opening and closing

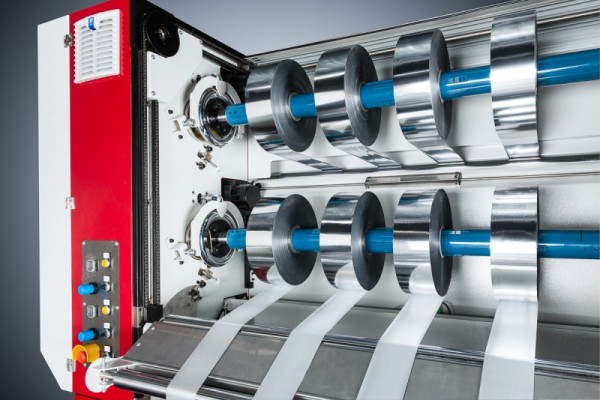

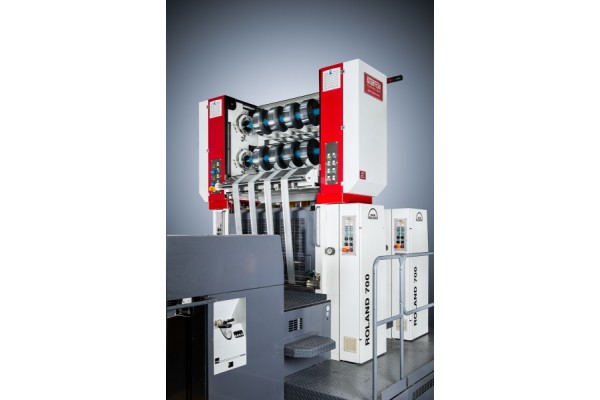

Multi reel function (5 webs)
5 Photocells for foil brake detection, mechanical positioning

Multi reel function (5 webs) (build in on site)

Extra multi real shafts 3" (each)
Extra foil shaft 3“ (each)
ALUS Automatic Loading – Unloading System
