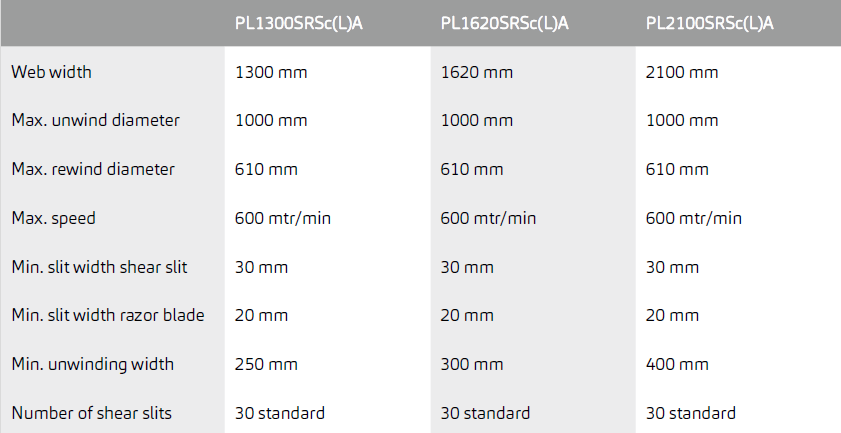

Pro Line SRScA

Wikkel-/slitmachine. Werkbreedte: 2000, 1620 of 1300 mm

Beschrijving

Unwind section
• Shaft less unwind
• Compact unwind
• Braked unwind powder magnetic
• Maximum roll width – 2000mm / 1620mm / 1300mm
• Maximum roll diameter - 1000mm (40inch)
• Minimum web width (shaft less unwind) - 450mm (18 inch)
• Minimum roll diameter (for floor pickup) - 400mm (16 inch)
• Maximum roll weight – 1200kg
• Edge guiding
• Core material - Cardboard
• Core size - 76mm (3 inch) and 152mm (6 inch)


Slitting Section
• Razor and Shear slitting
• Shear top knife holders included - 30
• Shear bottom anvils included - 30
• Razor holders included - razor in comb
• Minimum slit width - 20mm(razor) / 30mm(shear)
• Vacuum splice table
• Fully automatic shear knife positioning


Rewind Section
• Maximum roll diameter - 610mm (24 inch)
• Maximum rewind weight (per shaft) - 300kg
• Max slit width - 1960mm (77 inch)  / 1600 mm (63  inch) / 1280 mm (50 inch)
• Lay-on rollers
• Differential shafts (25mm wide chucks)
• Max Tension - 20kg across full width per shaft
• Closed loop rewind tension control
• Core Type - cardboard
• Core size 76mm
• Colour - RAL 7035


General
• Maximum machine speed - 600 m/minute
• Power Requirement - 380-415V+/- 10%, 3 phase (No Neutral), 50/60Hz, 40 KVA @ 63 Amps
• Air Requirement - 7 bar minimum, >0.2 m3/hr, clean and dry
